Bottling Plant – Automatic

Features

Bowling - Rinsing - Filling-Capping - Stickering-Batch Coding. Type: 500ML. 1LT. & 2LT.
Output:30-40 Bottles Per Minute
Food grade Stainless Steel structure. ISI Compliant Allenbradely-U.S.A. Make

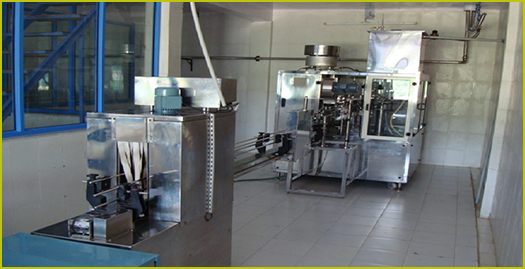

AUTOMATIC MONOBLOCK ROTORY TYPE RINSING, FILLING WITH CAPPING MACHINE

(SUITABLE FOR YOUR 500ML. 1LT. & 2LT. MINERAL WATER BOTTLES)
OUTPUT: 30-40 Bottles/Minute Depending on Bottle & Filling sizes.

  • AUTOMATIC RINSER
    Type : Automatic Jet Type.
    Stages : 2 Stages Rotary
    Rinsing Heads : 16 Heads
    Capacity : 40 Bottles/Minute
    HP : 0.5 HP
    M.O.C. : Contact Parts of S.S. & other M.S.
    Centrifugal Pump : S.S., Sharp
    Bottle Rinser : The machine will have 2 Rinsing nozzles.
  • AUTOMATIC FILLER
    Type : Solenoid valve operate by micro switch
    Filling Capacity : 40 Bottles/Minute
    Filling Range : 200ml. to 2000ml.
    Filling Heads : 12 (Twelve) Heads.
    Power Required : III Phase
    M.O.C. : Contact Part of S.S. & other M.S.
  • AUTOMATIC CAPPING
    Capping Head : 6(Six)Heads
    Capacity : 40 Bottles/Minute
    RPM : 1400 RPM
    HP : 1 HP
    M.O.C. : Contact Part of S.S. & other M.S.
